Enable Kunlunxin GPU Topology-Aware Scheduling

Kunlunxin GPU topology-aware scheduling is now supported via kunlunxin.com/xpu resources.

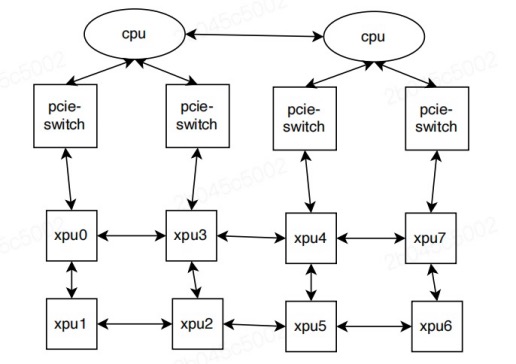

When multiple XPUs are configured on a single P800 server, performance is significantly improved when the GPU cards are connected to, or located within, the same NUMA node. This arrangement forms a topology among all the XPUs on the server, as shown below:

When a user job requests a certain number of kunlunxin.com/xpu resources, Kubernetes schedules the pods onto appropriate nodes with the goal of minimizing fragmentation and maximizing performance. The xpu-device then performs fine-grained allocation of the requested resources on the selected node, following these rules:

1. Only 1, 2, 4, or 8-card allocations are allowed.
2. Allocations of 1, 2, or 4 XPUs must not span across NUMA nodes.
3. Fragmentation should be minimized after allocation.

Important Notes

1. Device sharing is not supported at this time.
2. These features have been tested on Kunlunxin P800 hardware.

Prerequisites

• Kunlunxin driver >= v5.0.21
• Kubernetes >= v1.23
• kunlunxin k8s-device-plugin

Enabling Topology-Aware Scheduling

• Deploy the Kunlunxin device plugin on P800 nodes. (Please contact your device vendor to obtain the appropriate package and documentation.)
• Deploy HAMi according to the instructions in README.md.

Running Kunlunxin Jobs

Kunlunxin P800 GPUs can be requested by containers using the kunlunxin.com/xpu resource type. Below is an example pod specification:

apiVersion: v1
kind: Pod
metadata:
  name: gpu-pod1
spec:
  containers:
    - name: ubuntu-container
      image: docker.io/library/ubuntu:latest
      imagePullPolicy: IfNotPresent
      command: ["sleep", "infinity"]
      resources:
        limits:
          kunlunxin.com/xpu: 4 # requesting 4 XPUs
